The Ernie Ball Music Man StingRay HT guitar is the newest edition to the ever-growing family of Ernie Ball Music Man instruments. Featuring the familiar shape and feel of previous StingRay guitar models, the StingRay HT showcases new custom Music Man pickup technology inspired by over a decade of guitar string research delivering an incredibly dynamic and responsive playing experience. The pickups are able to achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels. The StingRay HT (Heat Treated) bridge pickup utilizes patent-pending heat-treated pole pieces with a large ceramic magnet and an overwound coil that gives the pickup higher frequency harmonics and excellent touch sensitivity. The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the StingRay's HT bridge pickup. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. This StingRay HT is outfitted with a stop tail Tune-o-Matic bridge which sets it apart from the StingRay's vintage style tremolo but shares a number of the standard specifications, including a contoured body, a roasted figured maple neck, 22 stainless frets, and Schaller locking tuners.

StingRay HT Logo

OPTIONS

Night Crawler

Golden Delicious

Mystique

Dark Rainbow

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

StingRay HT Highlights

StingRay HT Slide
StingRay HT Slide
StingRay HT Slide
StingRay HT Slide
StingRay HT Slide
StingRay HT Slide
StingRay HT Slide
StingRay HT Highlight

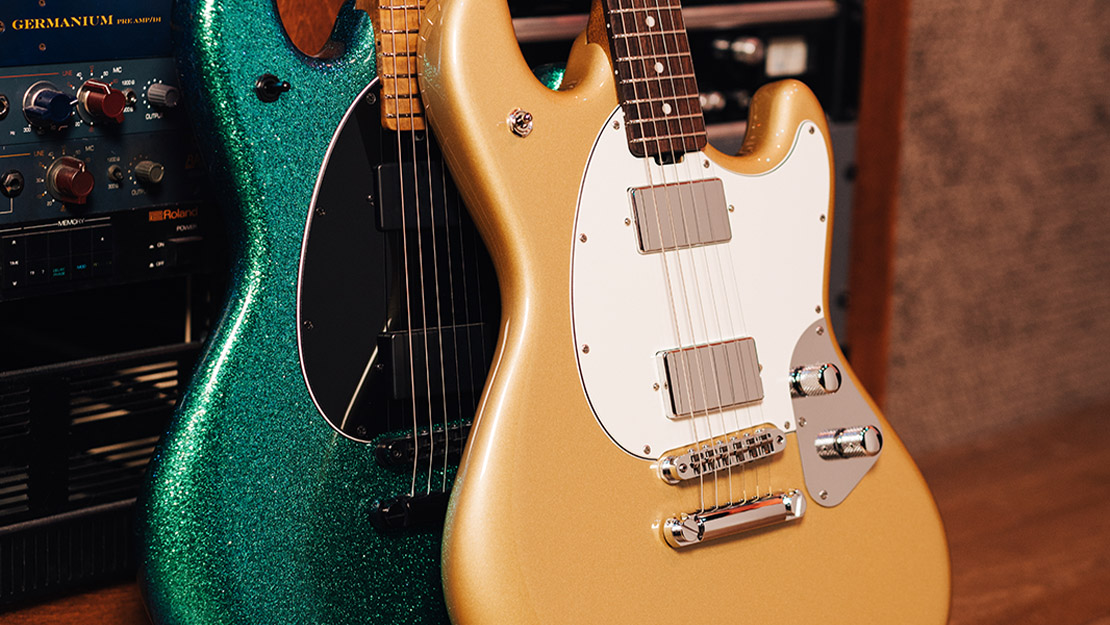

The Stingray HT bridge humbucker features proprietary Heat Treated pole pieces for increased output and wider frequency response
StingRay HT Highlight

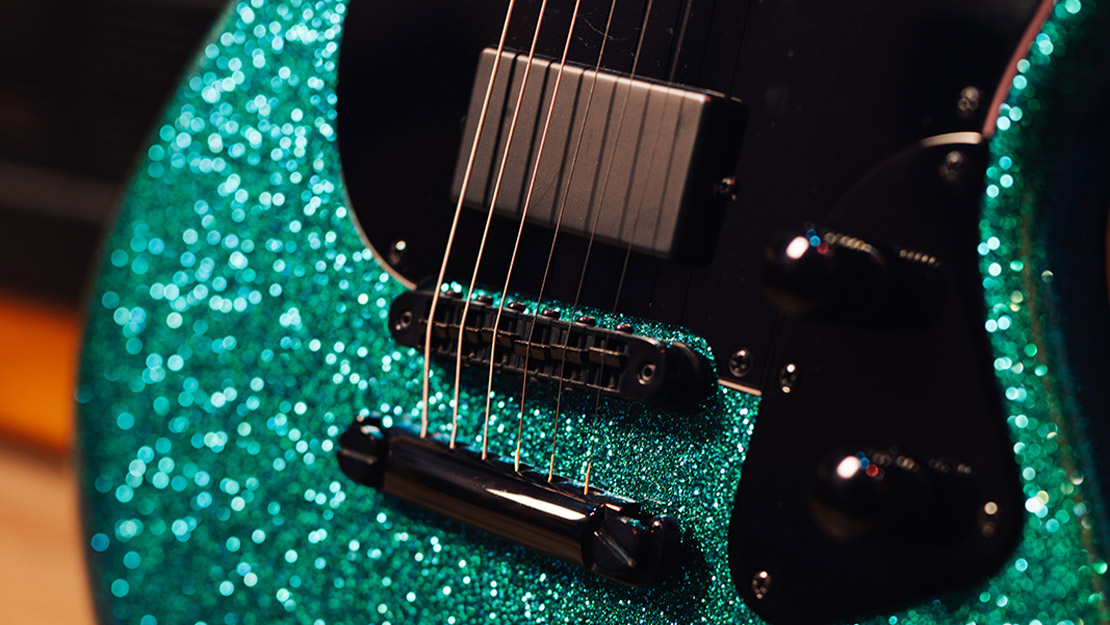

Combining the stop bar tailpiece with the tune-o-matic bridge provides augmented sustain, superior harmonic overtones, and greater tuning stability.
StingRay HT Highlight
The Stingray HT is crafted with a figured roasted maple neck, 22 stainless steel frets and Schaller locking tuners

Inspired by over a decade of electric guitar string research

Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups

More Output and Dynamic Range

Outperforms normal spec pickups by providing extra output and excellent touch sensitivity

Stingray HT Bridge pickup

The Stingray HT (Heat Treated) bridge pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

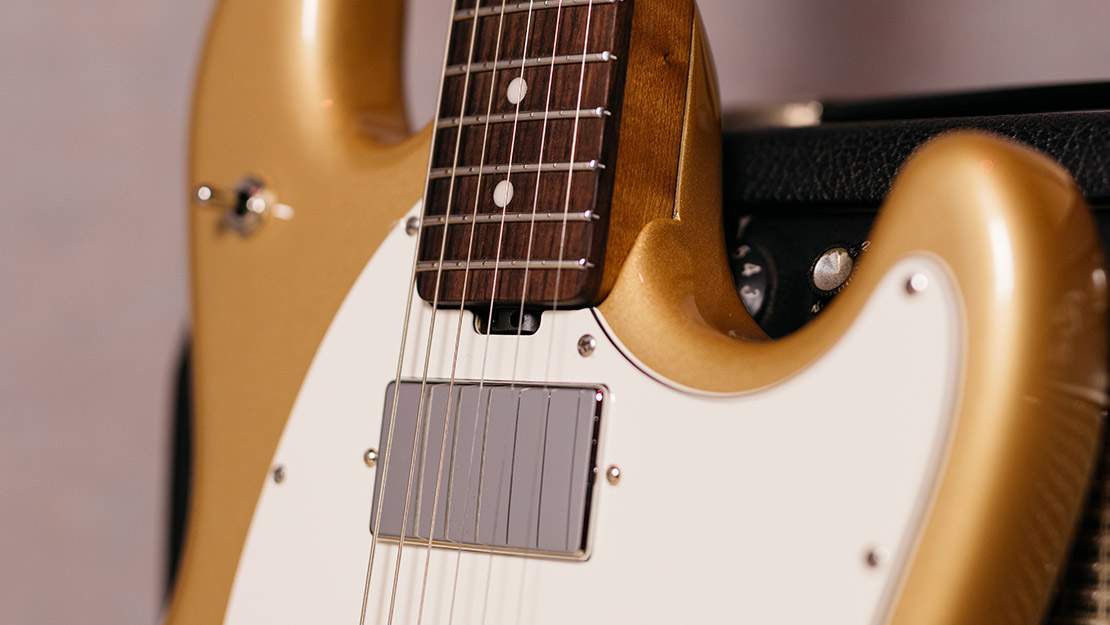

Stingray HT Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Stingray's HT bridge pickup.

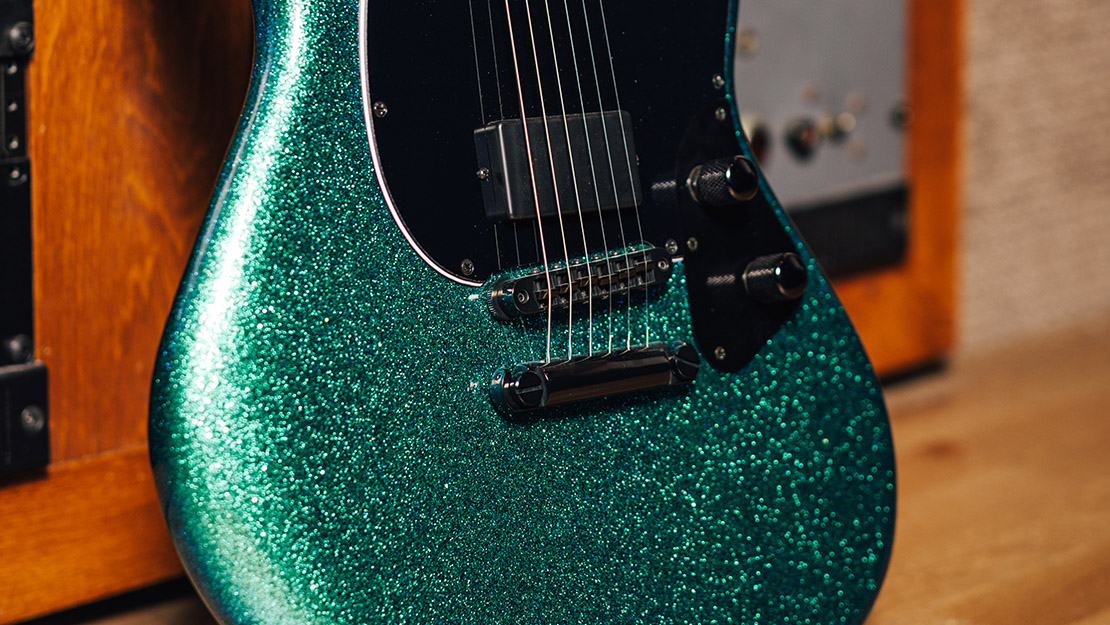

Push Push Boost Circuit

The Stingray HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

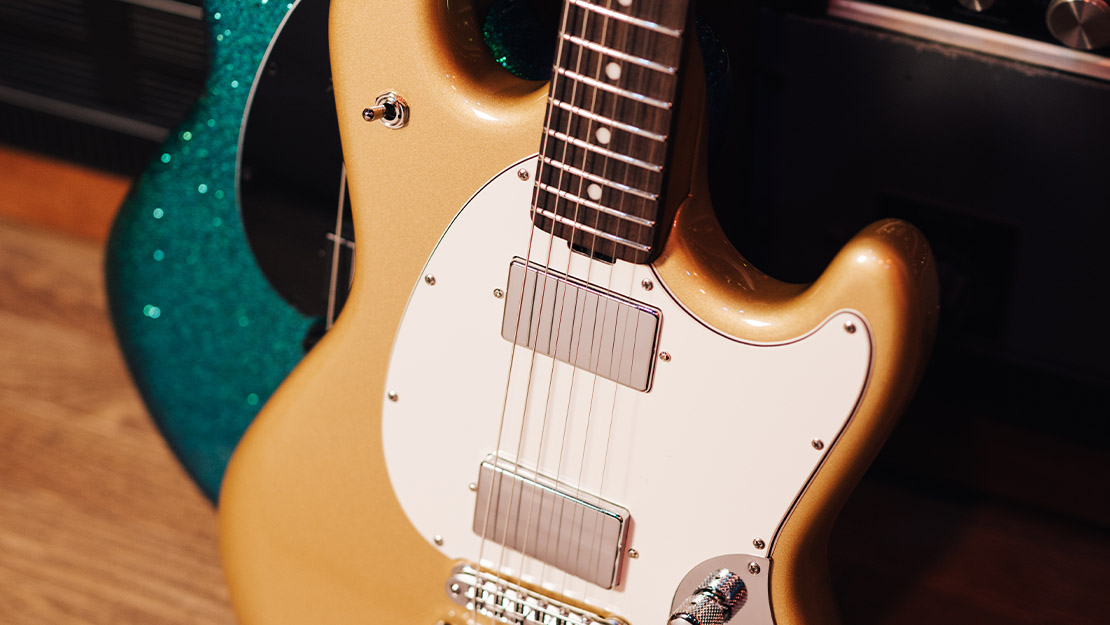

Transparent Buffered Output

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

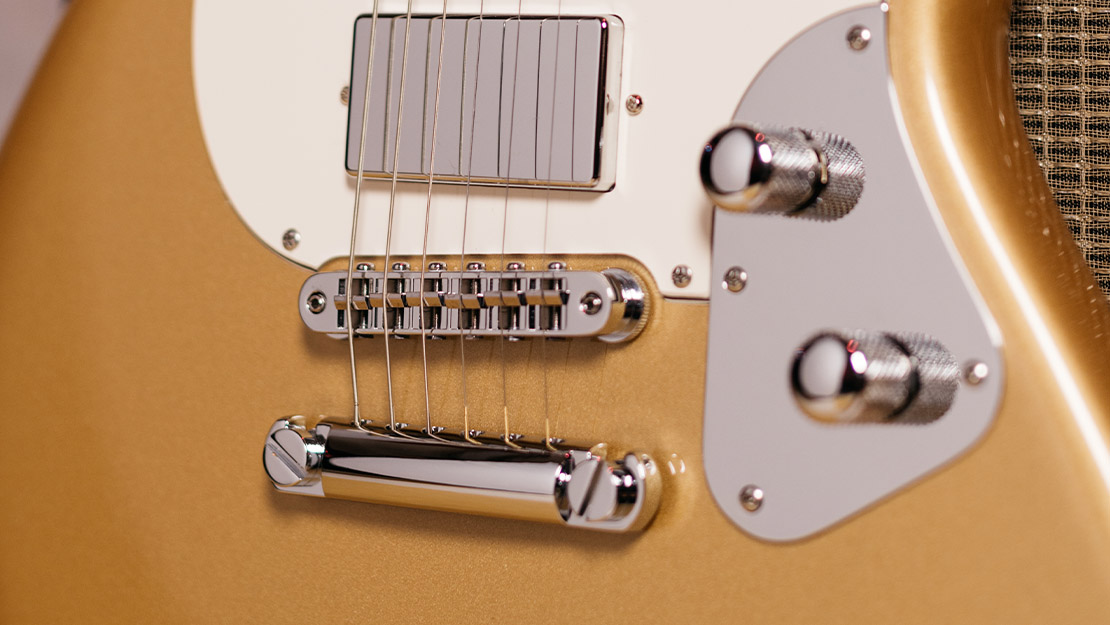

Tune-o-Matic Bridge

In use since the early 1950s, this popular bridge option is standard on the new Stingray HT. The Tune-o-Matic bridge is great for players who prefer a hardtail bridge option with great sustain and ease of string replacement.

Specifications, Schematics & More

Specifications StingRay HT
Model StingRay HT
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood Alder
Body Finish High Gloss Polyester
Body Colours Night Crawler, Golden Delicious, Dark Rainbow, Mystique
Pickguard Black/White/Black
Scale Length 25.5"
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High Profile, Medium Width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted Figured Maple
Fingerboard Figured Roasted Maple (Mystique); Ebony (Dark Rainbow); Rosewood (Night Crawler, Golden Delicious)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colours Natural
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Controls Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch.
Switching 3-way toggle pickup selector; Push/push volume pot for boost
Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Left Handed No
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)

id => 107

iid => 107

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-08-03 11:38:15

updated_at => 2022-08-03 11:38:15

Specifications StingRay HT
Model StingRay HT
Order 0
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood Alder
Body Finish High Gloss Polyester
Body Colors Night Crawler, Golden Delicious, Dark Rainbow, Mystique
Body Bindings
Bridge
Pickguard Black/White/Black
Scale Length 25.5"
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High Profile, Medium Width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted Figured Maple
Fingerboard Figured Roasted Maple (Mystique); Ebony (Dark Rainbow); Rosewood (Night Crawler, Golden Delicious)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding
Controls Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch.
Switching 3-way toggle pickup selector; Push/push volume pot for boost
Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Left Handed No
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)
