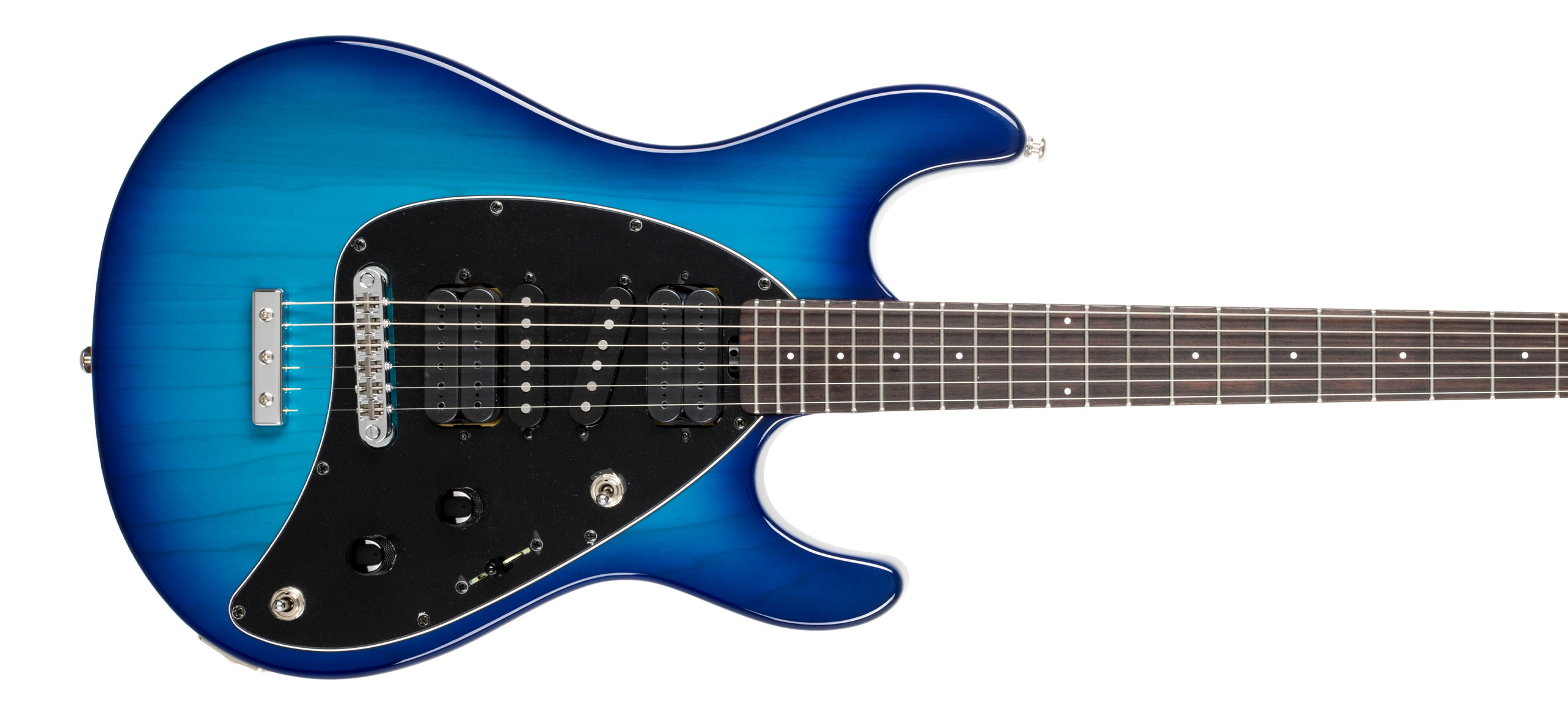

Steve Morse is widely known as one of the greatest and most versatile guitarists of our time. The Steve Morse signature, made to Steve's exact specifications, has been his instrument of choice both in the studio and on stage for more than 35 years. Featuring a classic double cutaway design, four custom DiMarzio pickups, and an intuitive switching layout, this signature guitar affords effortless playability, comfortable yet solid construction, and a full range of tonal possibilities.
Morse Blue Burst

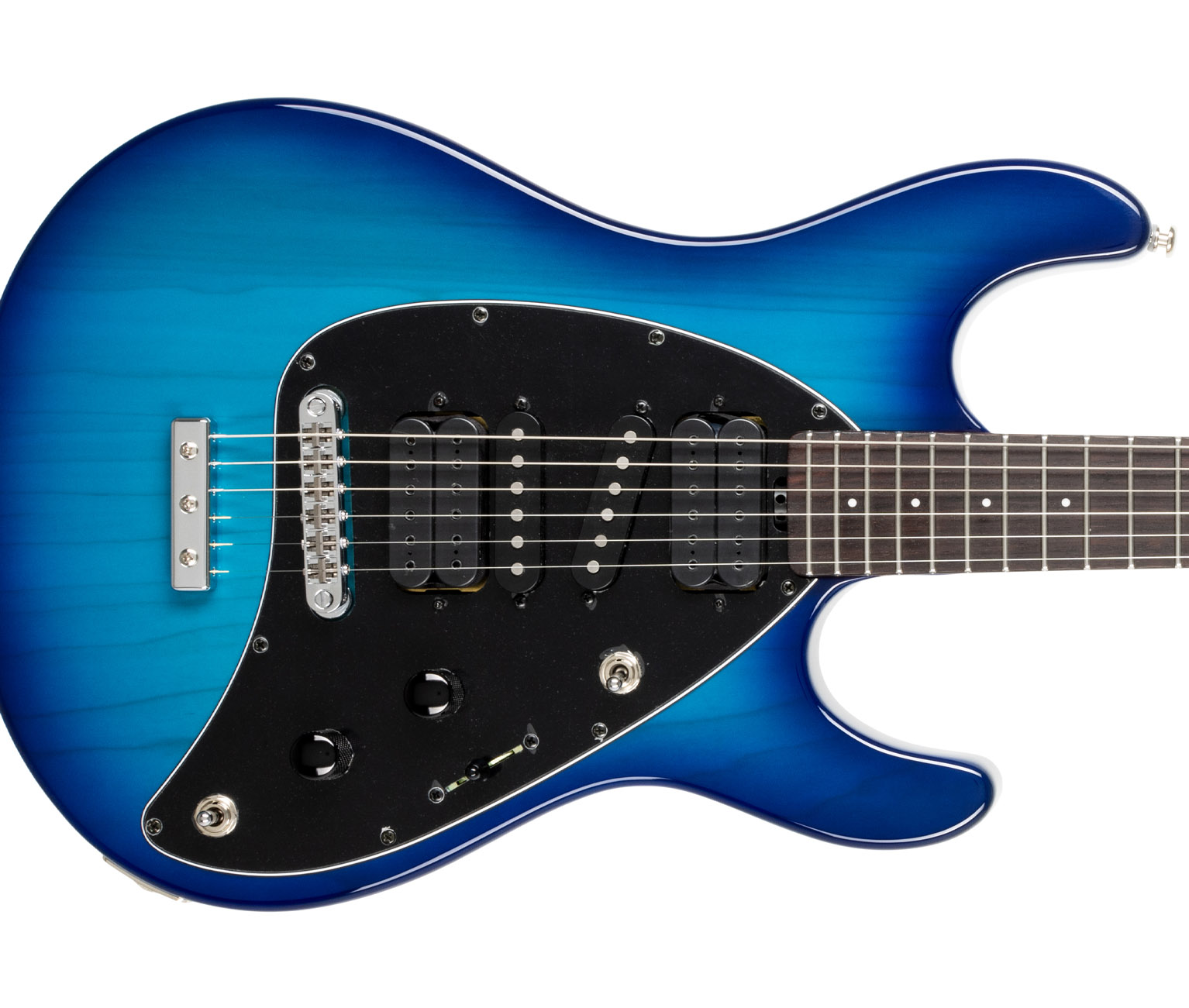

The Steve Morse signature guitar is equipped with two DiMarzio custom humbucking pickups, one DiMarzio custom single coil, and one proprietary single coil pickup. When combined, these pickups, controlled by a 3-way lever and two toggle switches, provide a total of 11 different pickup configurations, allowing for a wide range of tonal possibilities.

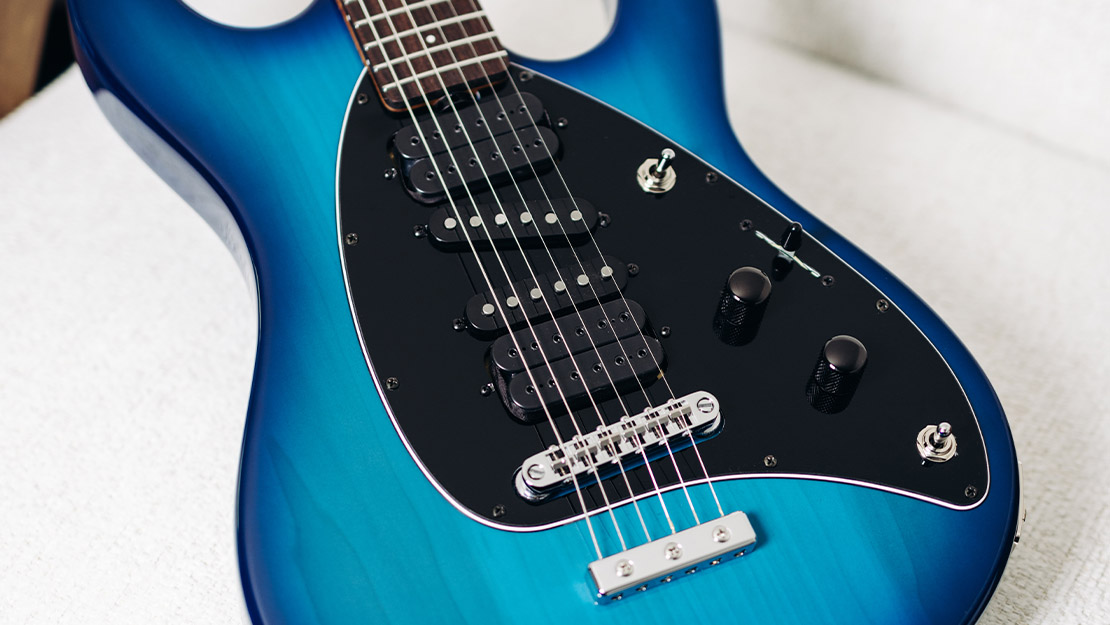

In use since the early 1950s, this popular bridge option is standard on the Steve Morse signature guitar. The Tune-o-Matic bridge is excellent for players who prefer a hardtail bridge option with great sustain and allows for easy string replacement.

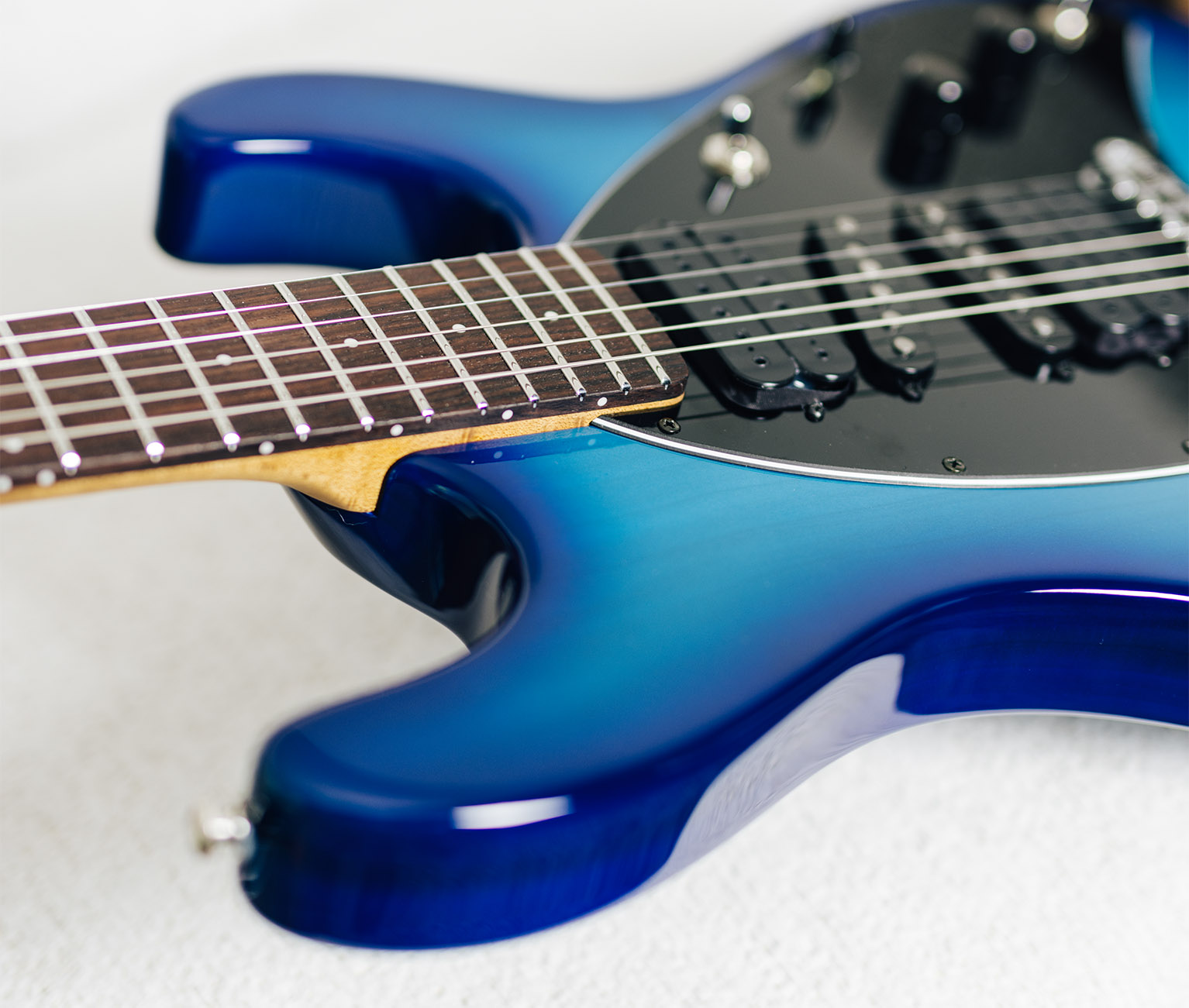

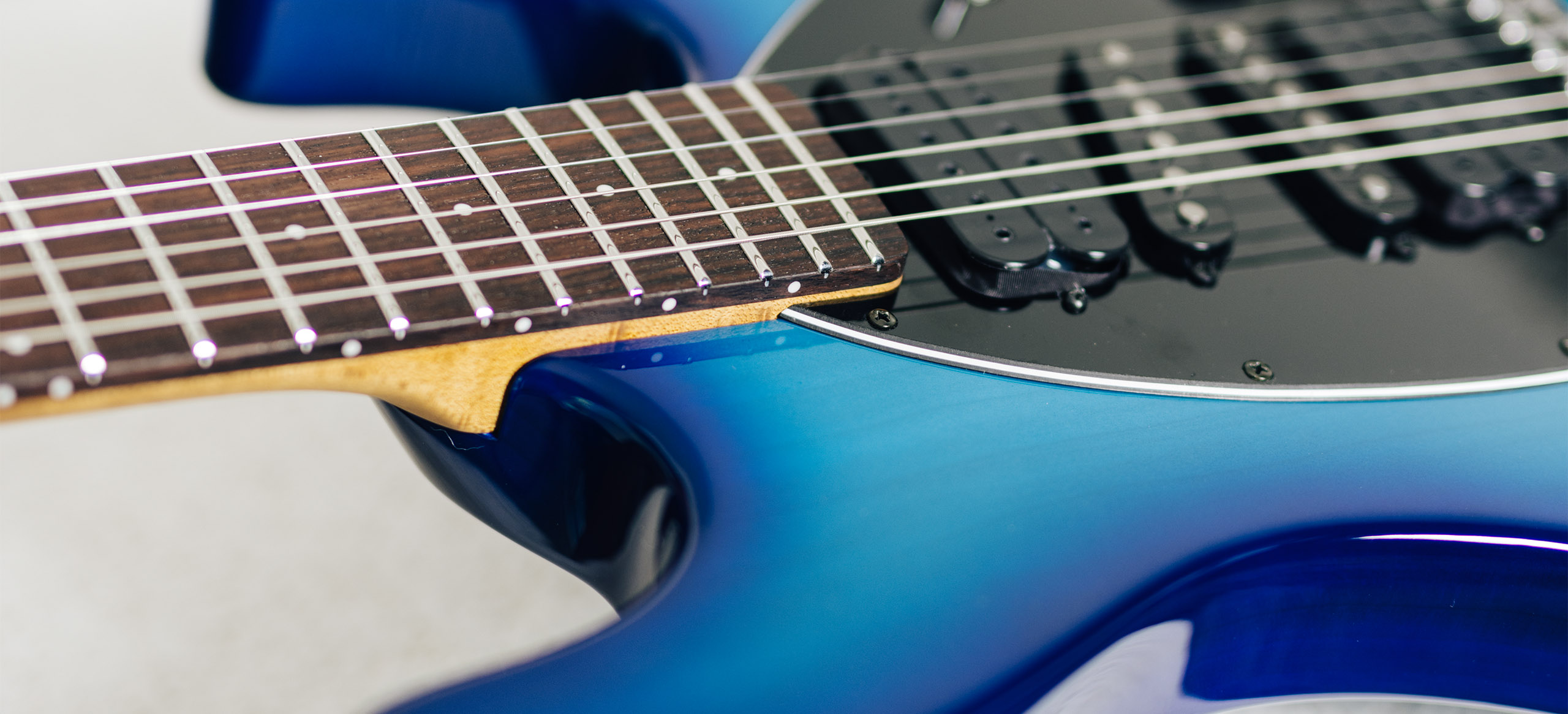

The Steve Morse signature guitar utilizes a sculpted neck joint, providing uninhibited access to all 22 stainless steel frets atop a roasted maple neck and rosewood fingerboard.
| Specifications | Steve Morse |
|---|---|
| Model | Steve Morse |
| Size | 12-1/2" wide, 1-3/4" thick, 36-7/8" long (31.8 cm wide, 4.5 cm thick, 93.7 cm long) |
| Body Wood | Poplar |
| Body Finish | High gloss polyester |
| Bridge | Tuneomatic bridge with thumbwheel height adjustment & individual saddles with Music Man® chrome plated, solid brass tail block |
| Pickguard | Black |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 12" (30.5 cm) |
| Headstock Size | Only 5-7/8" (14.9 cm) long |
| Frets | 22 - High profile, wide stainless steel |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret |
| Neck Wood | Figured roasted maple neck |
| Fingerboard | Rosewood |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colours | Natural |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |

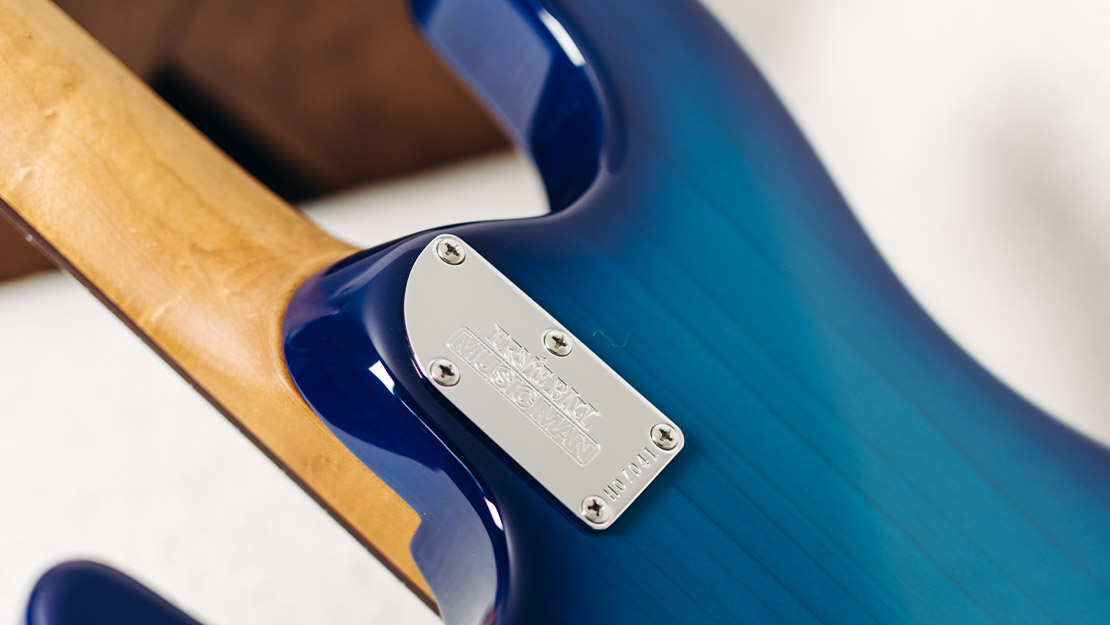

| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined pickguard |
| Controls | 250kohm volume and tone - .047µF tone capacitor |
| Switching | 2-way toggle, 3-way toggle pickup selector; 3-way lever pickup selector |
| Pickups | HSSH - DiMarzio (neck to bridge); Humbucking - DP-205 Morse Signature; Single coil - DP-108 Vintage; Single coil - Proprietary custom wound; Humbucking - DP-200 Morse Signature |
| Left Handed | No |
| Strings | Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
