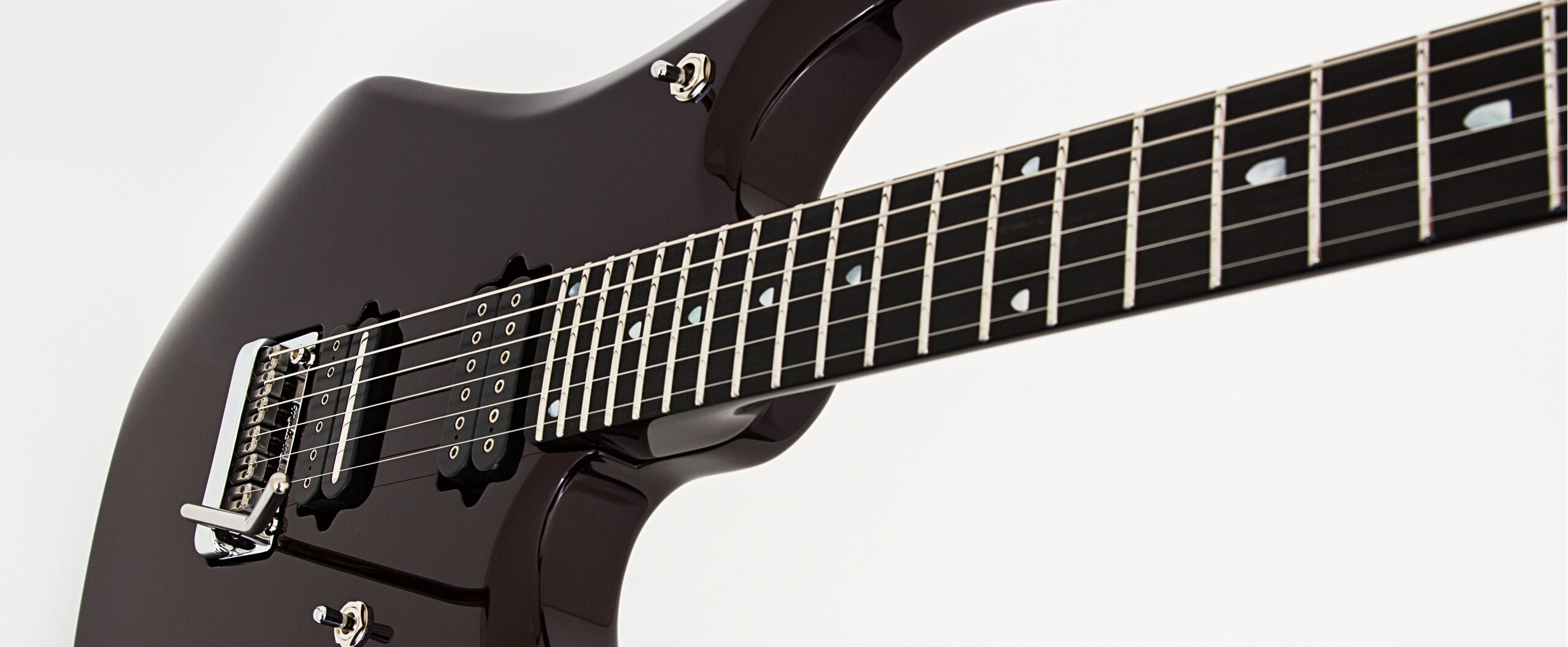

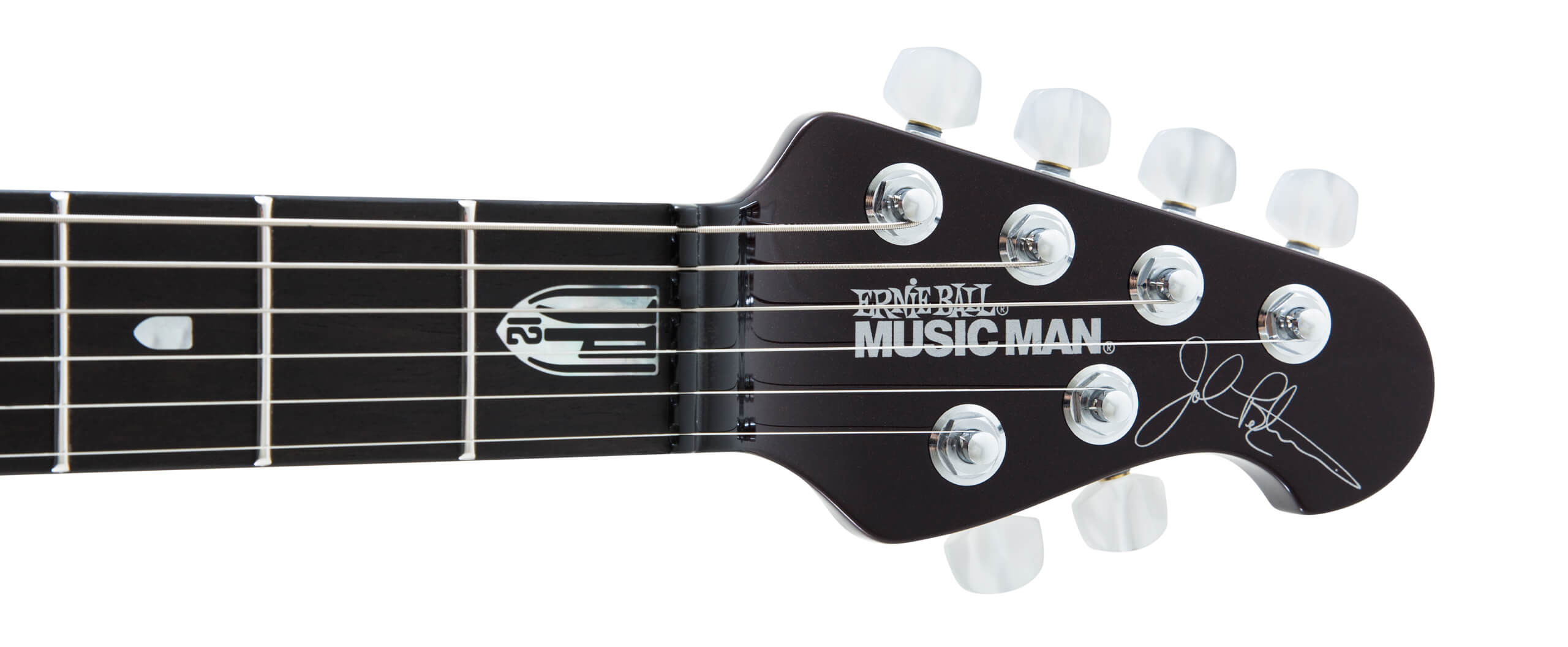

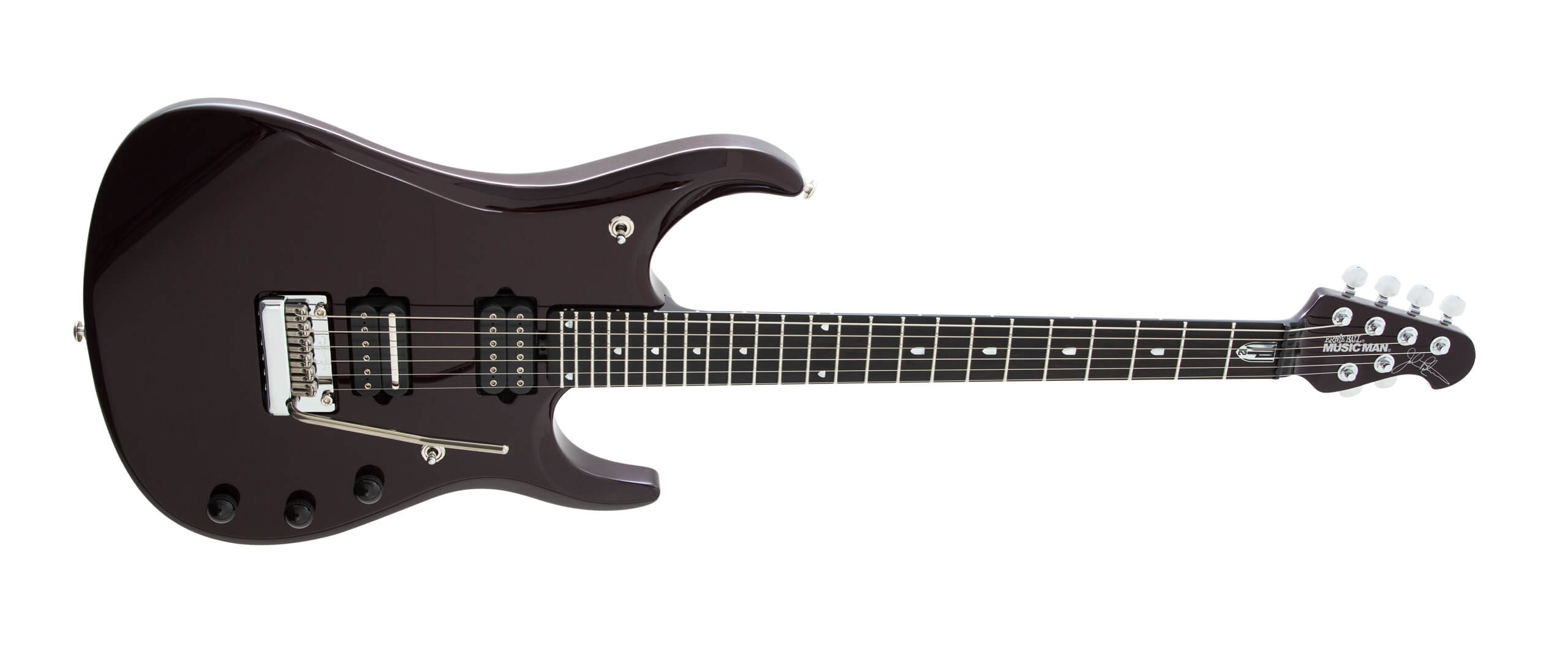

The JP12 features a combination of top appointments from previous John Petrucci signature instruments including DiMarzio CrunchLab and Liquifire pickups, piezo equipped tremolo and stereo output. Most notably, the mahogany JP12 neck has been streamlined to a symmetric, extra slim profile featuring an ultra flat 20" radius ebony fretboard. This, combined with the non-chambered body, mahogany Tone Block and maple top makes the JP12 a powerful and progressive instrument.
| Specifications | |
|---|---|
| Model | JP12 6 |
| Size | 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long) |
| Body Wood | Basswood with maple top and mahogany Tone Block |
| Body Finish | High gloss polyester |
| Body Colours | Cherry Sugar |
| Bridge | Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated, hardened steel with solid steel saddles. |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 20" (50.8 cm) |
| Headstock Size | Only 5-7/8" (14.9 cm) long |
| Frets | 24 - Medium Jumbo profile, Stainless Steel |
| Neck Width | 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret |
| Neck Wood | Select mahogany |
| Fingerboard | Ebony |
| Fret Markers | Custom JP12 Inlays |
| Neck Finish | High gloss polyester |
| Neck Colours | Color matches body |
| Tuning Machines | Schaller M6-IND locking with pearl buttons |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |
| Controls | 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor |
| Switching | 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector |
| Pickups | HH - 1 DiMarzio Liquifire - neck; 1 DiMarzio Crunch Lab – bridge; Piezo bridge pickup |
| Left Handed | No |
| Strings | 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240) |
id => 26
iid => 26
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2015-11-06 08:20:40
updated_at => 2015-11-06 08:20:40
| Specifications | ||
|---|---|---|
| Model | JP12 6 | |
| Order | 0 | |
| Size | 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long) | |
| Body Wood | Basswood with maple top and mahogany Tone Block | |
| Body Finish | High gloss polyester | |
| Body Colors | Cherry Sugar | |
| Body Bindings | ||
| Bridge | Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated, hardened steel with solid steel saddles. | |
| Pickguard | ||
| Scale Length | 25-1/2" (64.8 cm) | |
| Neck Radius | 20" (50.8 cm) | |
| Headstock Size | Only 5-7/8" (14.9 cm) long | |
| Frets | 24 - Medium Jumbo profile, Stainless Steel | |
| Neck Width | 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret | |
| Neck Wood | Select mahogany | |
| Fingerboard | Ebony | |
| Fret Markers | Custom JP12 Inlays | |
| Neck Finish | High gloss polyester | |
| Neck Colors | Color matches body | |
| Neck Binding | ||
| Tuning Machines | Schaller M6-IND locking with pearl buttons | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover | |
| Controls | 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor | |
| Switching | 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector | |
| Pickups | HH - 1 DiMarzio Liquifire - neck; 1 DiMarzio Crunch Lab – bridge; Piezo bridge pickup | |
| Left Handed | No | |
| Strings | 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240) |
